The Effective and Affordable Ballooning Solution
Benefits & Features
Intuitive Interface
Simply drag in a part drawing, and begin ballooning.
Rotate Drawing
Have a rotated drawing? No problem, simply rotate the pdf prior to ballooning.
Convert Units
Convert units between inches and millimeters as needed.
Export AS9102C FAI Report Form
Easily export dimensions to an AS9102 FAI report in excel.
Private and Secure
Your drawings remain in your browser and are never uploaded to the 'cloud'. Contact us for additional info.
Transparent Pricing and Simple Sign-up
No complicated pricing or upsells. Sign up and manage your account easily.

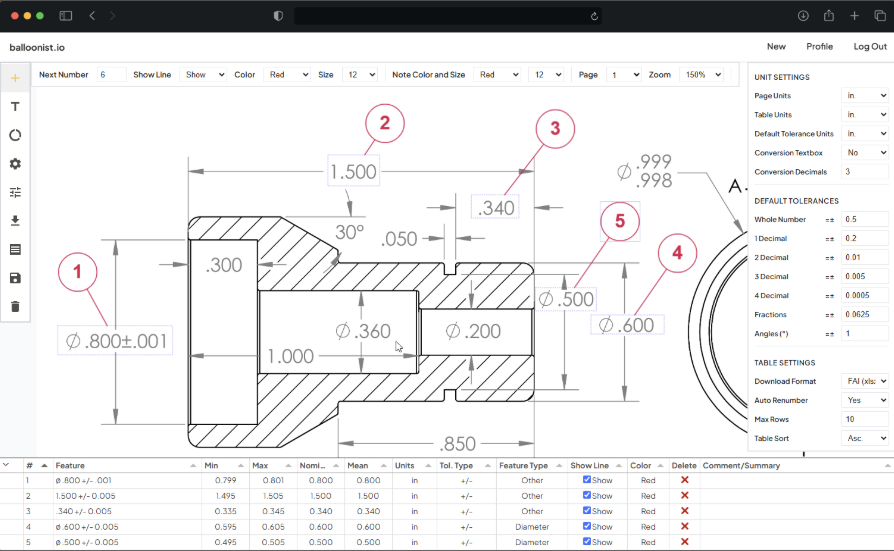

How Balloonist.io Works
The simple way to balloon and extract features from your drawings.
Upload PDF Drawing
Click to upload or drag file into the browser.
Select Features
Simply draw a rectangle around the features you wish to balloon & extract.
Features Extracted & Tabulated
Once selected, dimensions and features are extracted, interpreted, and added to your feature table. Balloonist attempts to interpret the type of feature (e.g., diameter, thread, etc.) as well as the nominal, max, min, and mean values and tolerance type.
Edit and Review
After you've selected part features, and they've been added to the table, you have the flexibility to change numbers, toggle visibility of leader line, and delete items as well as change the color and size of the balloon.
Export Files
When finished, simple export the edited/ballooned PDF as well as the feature table (as an AS9102C Excel report or CSV).
Simple, Transparent Pricing
All plans include a free 7 day trial. No credit card required to start.
Get in Touch
Have questions? Our team is here to help.
